PowerMax 3600

Expand from
3.6- 57.6 kWh Capacity

Up to 57.6 kWh!

World's First Rugged Power Station
for Both Home and Outdoor Backup

Introducing PowerMax 3600

24/7 UPS Backup

5-8ms Fast Switch

50% Faster Switch

From 3600Wh to 57600Wh

Up to 30 Days of Whole-Home Power Supply

* Note:Calculated by 2kWh/day.

3600W

14 Versatile Outlets

Power up to 99%
of Essential Devices

Note: 3600W for EU standard. 3000W for US/JP standard

Built-in
Advanced TI chip

Up to 10% Faster

Empower with Green&
Zero-cost Energy

Fuel Up to 80% in Just 0.96Hrs

Charging at Super Fast Speed

First Attempt in Rugged Power Station

0.8M Vertically

Drop-Proof

Splash-Proof

Dust-Proof

Anti-UV & UL94V-0 Rated Fire-Retardant

Discharge Temperature from

-20℃ to 55°C

Up to 10°C Higher/
Lower Temperature Resistance than Peers

LiFePO4 Cells | Eightfold Safety Protection BMS

Up to 3500 Life Cycles,

Last for Up to

25 Years

Large in Any Power
Yet Easy on Any Move

On-Unit Control At a Glance

Up to 10% Faster Button
Response Time

Smart APP Control with
Upgraded Firmware

Via WiFi or BlueTooth

Whisper-quite Charging without Noise and Fumes

Only 62 dB Max (1.5M Distance)

Low Battery Warning

Timely Low Battery Warning,
Lifesaver in CPAP Usage.

45°C Constant Temperature Cooling System

Up to 40℃ Temperature Reduction
4*38mm Large Smart Temperature-activated Fans

5 * LED Light Modes

Morse Code Signal Light Lifesaver in Emergency

First Attempt! From Rugged Phone
to Rugged Power Station

Drawing upon years of adeptness in crafting rugged phones, Blackview, renowned as a leader in the rugged phone industry, is embarking on a pioneering venture by infusing the unbreakable capabilities of rugged phones into power stations.

0.8M Vertically Drop-Proof Design

Forged to match the harsh terrain of your expeditions, the PowerMax 3600 is meticulously crafted to withstand vertical falls from heights of up to 0.8 meters, alleviating concerns of unintended drops from your grasp while detaching it from the car or stairs.

Splash-Proof & Dust-Proof Body

From lakesides in the dewy morning to dusty desert at dusk, you can take it anywhere without worries – it effortlessly shields against vertical water droplets and certain solid particles from entering the enclosure.

Anti-UV&UL94V-0 Rated

Fire-Retardant Case

Whether it’s in the midst of yard trimming or desert exploration, the PowerMax 3600's Anti-UV feature protects it from fading and aging brought on by prolonged sun exposure, and its UL94V-0 flame-retardant case ensures that there is no risk of fires resulting from heat generation.

Not Just for Lighting, but Also for Emergency Communication

In addition to 5 standard LED light modes, information can be sent through light signals by varying the brightness and flashing patterns of the lights, which is helpful at night, inclement weather, or in low visibility situations to convey signals, especially distress calls.

5 LED Light Modes

Dim Mode

Bright Mode

Breathing Light Mode

Flashing Mode

SOS Mode

Morse Code Signal Light

Home lighting during power outage

Emergency communicationt in the wild.

Large and Versatile Output

From 3600Wh to 57600Wh

Up to 30 Days of Whole-Home Power Supply

Note:Calculated by 2kWh/day.

3600W

14 Versatile Outlets

Power 99%
of Essential Devices

Get True Grid-Independence Indoor or Outdoor

How does Blackview Oscal PowerMax 3600 help
ease energy shortages and save electricity bills?

Portable energy for your
camping or glamping.

Consistent power solutions in
professional creative work.

Reliable home backup power during
unexpected power outages.

57600Wh Max Battery, Up to 30 Days
of Home Backup Power Supply

Catering to your various energy needs from outdoor to indoor activities, Blackview Oscal PowerMax 3600 offers the flexibility to tailor your battery capacity with a 100% modular design, ranging from 3.6 kWh to 57.6 kWh with up to 15 Battery packs ( 3600 Wh/per pack).

3.6kWh

≈36km-108km for E-Scooters

≈Up to 3 Days Power for RV&Camping

28.8kWh

≈256km-640 km for E-Motorcycles

≈Up to 7 Days for Professional Work

57.6kWh

≈345.6-403.2km for EVs like Tesla

≈Up to 30 Days for Whole-Home Backup

Large in Any Power Yet Easy on Any Move

3600W Rated Power,
Power 99% of Appliances

Rest assured that whatever you plug into the PowerMax 3600 will operate at its optimal capacity with its 3600W pure sine wave output, capable of handling power surges from pro tools in off-grid life like power drills and cutting machines to home life essentials such as microwaves, refrigerators, and air conditioner.

(Note: 3600W for EU standard. 3000W for US/JP standard.)

If on a particular Saturday, the city's grid goes down for the entire day,
What Can Your Perfect Day Be with Blackview Oscal Power Max 3600?

Breakfast

0.25H* 800W Toaster

Coffee

0.1H *800W Coffee Maker

Lawn Maintenance

1 H* 800W Corded String Trimmer

Fishing

3H* 180W Portable Fridge

Lunch Break

1 H*5000mAh Phone Charging

Lunch

0.5H* 1000W Electric Skillet

Barbecue

1 H*1000W Electric Grill

Outdoor Movie

2H*65W Projector

Campfire Chat

2H*50W Portable Speaker

Stargazing

7H * 30W Camping Lantern

Multitask for 14 Devices Simultaneously,
One is Enough for Your Whole Family

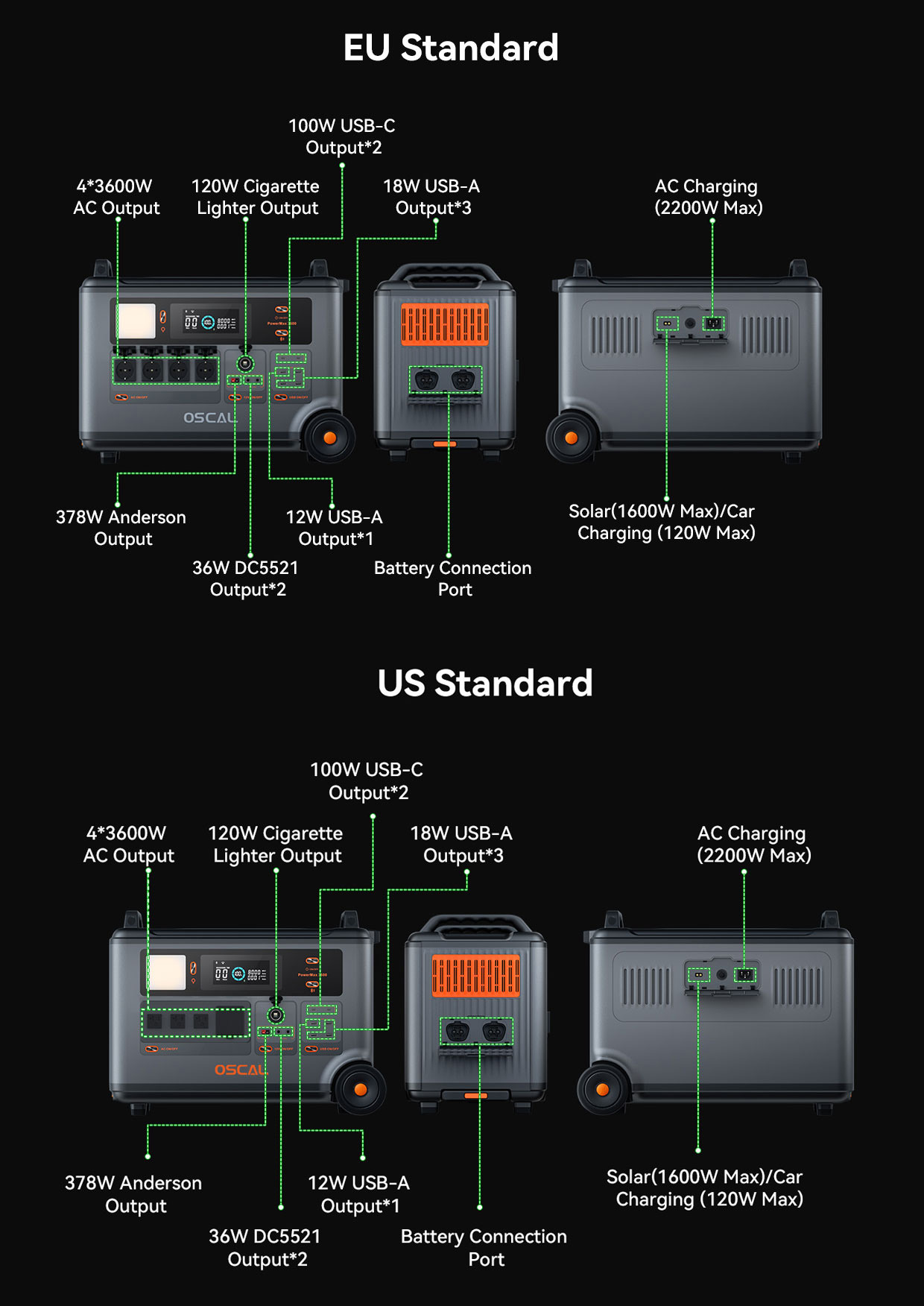

With a high-quality 3600W rated pure sine wave AC inverter, 14 outlet sources of Blackview Oscal PowerMax 3600 can satisfy all your outlet needs to run your entire party, camping trip, or even your whole house in the event of an unexpected outage.

4*3600W
AC Output

120W Cigarette
Lighter Output

100W USB-C
Output*2

18W USB-A
Output*3

AC Charging
(2200W Max)

378W Anderson
Output

36W DC5521
Output*2

12W USB-A
Output*1

Battery Connection
Port

Solar(1600W Max)/Car
Charging (120W Max)

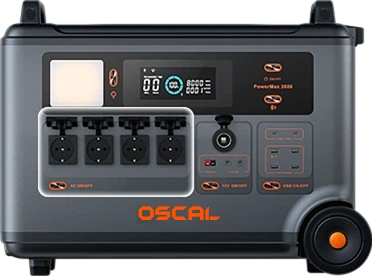

EU Plug

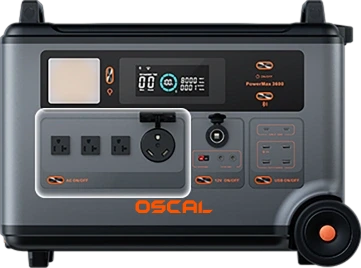

US Plug

JP Plug

CPAP 40W

45 Hours

Washer 500W

6.2 Hours

Microwave 1300W

2.4 Hours

Coffee Maker 1000W

3.1 Hours

Cutting Machine 1100W

3 Hours

Electric Grill 1150W

2.7 Hours

AC Outlets:
4*3600W AC Output

1*378W Anderson +2*36W
DC5521 Output

oxygen machine 240W

13 Hours

Camping Lantern 15W

208 Hours

Drones 70W

45 Hours

Speaker 150W

21 Hours

Portable Fan 20W

156 Hours

Survey Camera 20W

156 Hours

Phone 19.54Wh

160 Hours

Laptop 60Wh

52 Hours

Camera 16Wh

195 Hours

Smart Watch 5Wh

622 Hours

Projectors 250W

12.5 Hours

32"TV 50Wh

62 Hours

USB Outlets:
2*100W USB-C+1*12W USB-A
+3*18W USB-A Output

1*120W
Cigarette Lighter Port

Car Refrigerator 60W

52 Hours

Portable Fan 30W

104 Hours

Handheld Vacuum Cleaner 40W

78 Hours

Electric Blanket 60W

52 Hours

Portable Air Purifier 70W

45 Hours

Travel Coffee Maker 100W

31 Hours

Fast and Green Input

AC Charging

Car Charging

Gas Generator Charging

Lead-acid Battery Charging

Wind Turbine Charging

Solar Charging

Water Turbine Charging

6x Faster!
Fuel Up to 80% in Only 0.96 Hrs
Charge in Any Way You Like

Charge the device quickly from a wall outlet at home or replenish it on the go from your car. Are you seeking eco-friendly energy from solar, wind, or water sources? We have your back. Are you looking for even more options? Blackview Oscal PowerMax 3600 is also compatible with an array of energy systems, encompassing EV charging stations, generators, and lead-acid batteries.

AC+Solar Dual Charging

Max 3600W

only 1.2 Hrs

AC Charging

Max 2200W

only 1.96 Hrs

EV Charging Station

Max 2200W

only 1.96 Hrs

Gas Generator Charging

Max 2200W

only 1.96 Hrs

Lead-acid Battery Charging

Max 240W

only 15Hrs

12V/10A Car Charging

Max 120W

only 30 Hrs

Live a Sustainable Life with Green and
“Zero-cost” Energy.Save Up to $1612.8 /Year!

Solar Charging

Max 1600W

2.25 Hrs

Wind Turbines Charging

Max 2200W

1.96 Hrs

Water Turbine Charging

Max 2200W

1.96 Hrs

Charge Time: Up to 6 Times Faster Than Others

3600W Max. Input

1.2 hrs

Blackview Oscal PowerMax 3600 (3,600Wh)

1800W Max. Input

2 hrs

J Company (2160Wh)

600W Max. Input

6 hrs

G Company (3032Wh)

Safe and Reliable Battery

24/7 UPS Backup

5-8ms Fast Switch

50% Faster Switch

Intelligent BMS

Eightfold Safety Protection

Advanced LiFePO4 Cells

Up to 3500 Life Cycles,
Last for Up to

25 Years

EV-grade LFP Batteries,
The 25-Year Promise of Safety!

Safety and durability stand as the cornerstone of Blackview Oscal's mission . With Blackview Oscal PowerMax 3600, we've harnessed cutting-edge LiFePO4 battery chemistry, ensuring an impressive 3500+ lifespan circles* of nearly 25 years when used every other day.

Note: 3500+ cycle life to 80% capacity.

Lifespan Circles: Up to 5 Times More Durable Than Others

Intelligent BMS,
Eightfold Safety Protection

Empowered by the intelligent Battery Management System, any potential glitches, be it overheating, overload discharging, or over-voltage issues, can be promptly fixed.

Over Current Protection

Short Circuit Protection

Over Voltage Protection

Under Voltage Protection

Over-temperature Protection

Low-temperature Protection

Over-charging Protection

Overloading Protection

Working as Usual in Cold or Hot Weather

Be it the exploration of Alaska's glaciers or the vast Sahara deserts, Blackview Oscal PowerMax 3600 remains unaffected by the most extreme temperatures from -20~55°C(-4~131°F).

Be stable in the exploration of
-20 °C Alaska's glaciers.

Be stable in the exploration of
55 °C Sahara deserts.

Temperature Resistance: Up to 10°C Higher/Lower than Others

-20~55°C (-4~131°F)

PowerMax 3600W Operating Temperature

-10°C ~ 45°C

DELTA Pro Operating Temperature

*The high-temperature warning will be triggered at 55°C. The high-temperature overload protection will be activated at 58°C. Note: Best under conditions from -10°C~45°C(14~113°F)

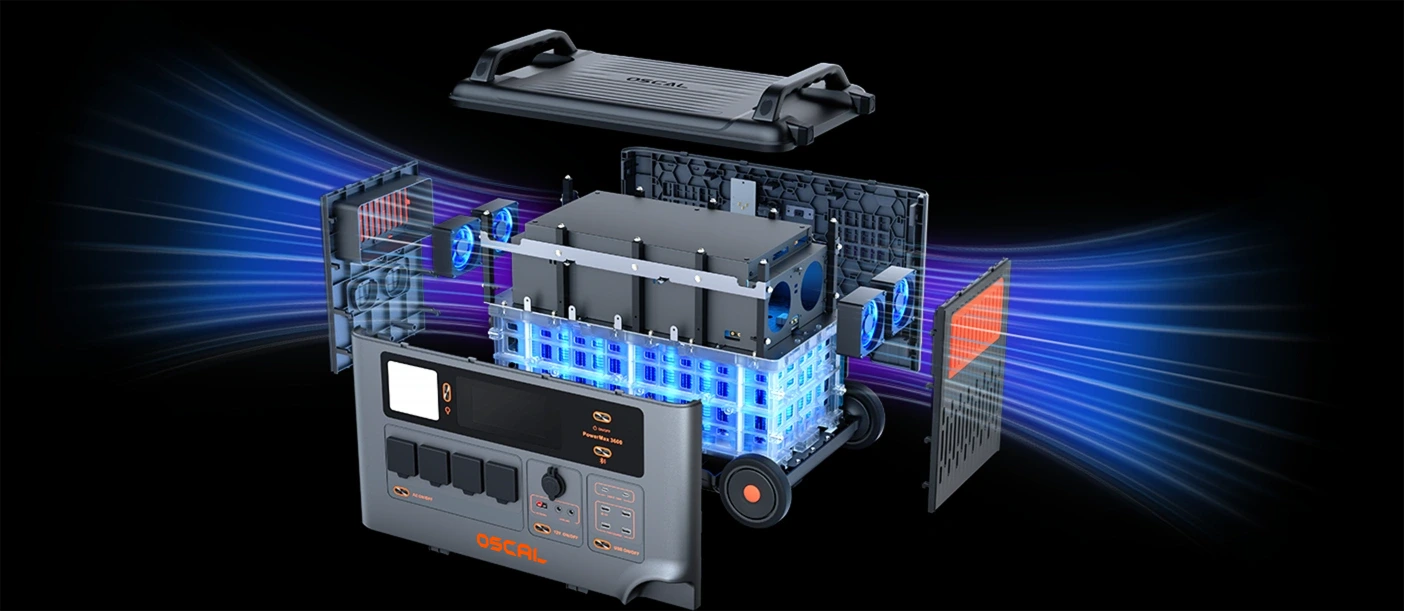

45℃ Constant Temperature Cooling System

Four temperature sensors

Temperature monitoring at 100ms/time.

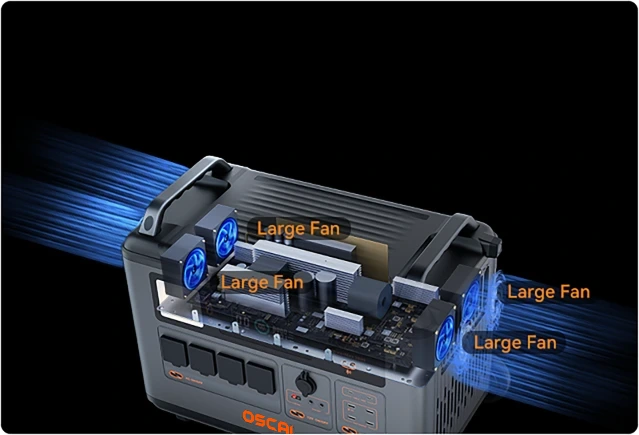

Four 38mm large smart
temperature-activated fans

Reduce the temperature by 40℃

5-8 ms Fast Switch,
24/7 Uninterrupted Power Station

When the home power source fails, the Blackview Oscal PowerMax 3600 will swiftly switch to work as the backup battery in only 5-8ms , so you hardly notice the slight flickering of the lights, delivering constant power to protect your computer from data loss and maintaining the uninterrupted operation of your fish tank, refrigerator, CPAP, and other essentials.

*The device will warn in advance if the power is about to run out.

Switch Time: 50% Faster than Others

5-8 ms
PowerMax 3600W UPS
20ms
AC300 UPS
Easy and Smart Operation

Built-in
Advanced TI chip

Up to 10% Faster

On-Unit Control At a Glance

Intuitive Display and Oversized Buttons

Smart APP Control with

Upgraded Firmware

Via WiFi or BlueTooth

On-Unit Control+Smart App Control,
All in the Palm of Your Hands
Use Bluetooth or WiFi to access the PowerMax 3600's smart app for remote settings to check the status and manage your power consumption. Also, the large buttons let you maintain complete control of the gadget, and the easy-to-read LCD screen makes it straightforward to access all the information at a glance.

Smart APP Control

On-Unit Control

Button response time:10% Faster Than Peers

TI chipset

PowerMax 3600W UP

Etron chipset

Peers

Eco-friendly and Ear-friendly Usage
Take Action for Our Beloved Planet,
Embrace Low Carbon Living
Blackview Oscal is actively committed to environmental protection, evident in its use of ROSH-certified eco-friendly materials. Unlike gas generators, Blackview Oscal PowerMax 3600 keeps your lights on without noise and fuel pollution, making it friendly to use whether you're at home, setting up a tent, or taking a road trip.

Note: Noise level when fully loaded: 62 dB (1.5M distance).

Brand New PM100 & PM200 Solar Panel

Charge the Blackview Oscal PowerMax 3600 to full in just 2.25 Hrs from the sun with 8* 200W or 16*100W portable solar panels (Sold separately) while away from the grid. The Integrated MPPT charge controller gets the most efficient solar charge with up to 23% solar conversion efficiency.

100W & 200W Solar Output

Adjustable Kickstand

Laminated Technology

Long-lasting ETFE Material

Up to 21.7%~23% Highly Efficient

2.25Hrs to 100%

Blackview Oscal PM100/200 Solar Panel Dimension
Model
PM100 Solar Panel
PM200 Solar Panel
Rate Power
100W
200W
Open Circuit Voltage
24.7V±5%
25.2V(Not less than 23.94V)
Short Circuit Current
5.6A±5%
11.42A(Not less than 10.85A)
Cell Efficiency
≥23%
≥21.7%
Cell Lamination
ETFE
ETFE
Cell Type
Monocrystalline Silicon
Monocrystalline Silicon
Operating Temperature
-10~+65℃
-10~+65℃
Weight
3.8kg±1kg
7kG
Dimension (Unfolded)
1228*536*25mm
536*2349*25mm
Dimension (Folded)
536*608*38mm
536*618*54mm
Warranty
2 Years
2 Years
What Makes Blackview Oscal PowerMax 3600 Stand Out?

Blackview Oscal
PowerMax3600

Goal Zero Yeti 3000X

Honda EU3000iS

BatteryType
LiFePO4
Li-ion NMC
Gas
Capacity
3600-57600 Wh
3032Wh
-
Life Cycles
3500 Cycles to
80% capacity
500 Cycles to
80% capacity
-
AC output
3600W
(7200W surge)
2,000W
(3,500W surge)
2800W
(3,000W surge)
Outlets
4x 3600W Output (Max) USB-C 100W X2 USB-A 12W X1 USB-A 18W X3 Anderson 378W X1 DC 5521 36W X2 Cigarette Lighter 120W X1
2x 120V/20A AC 2x USB-A 12W Max. 1x USB-C 18W Max. 12V/10A DC 120W Max. 1x 12V Car Port, 160W Max. 2x 12V/30A,
120V 3000W max. (25A) 2800W rated (23.3A) 20A 125V Duplex, 30A 125V Locking Plug
AC Input
Max.2200W
Max.600W
×
PV Input
Max.1600W
Max.600W
×
Dual AC+ PV Input

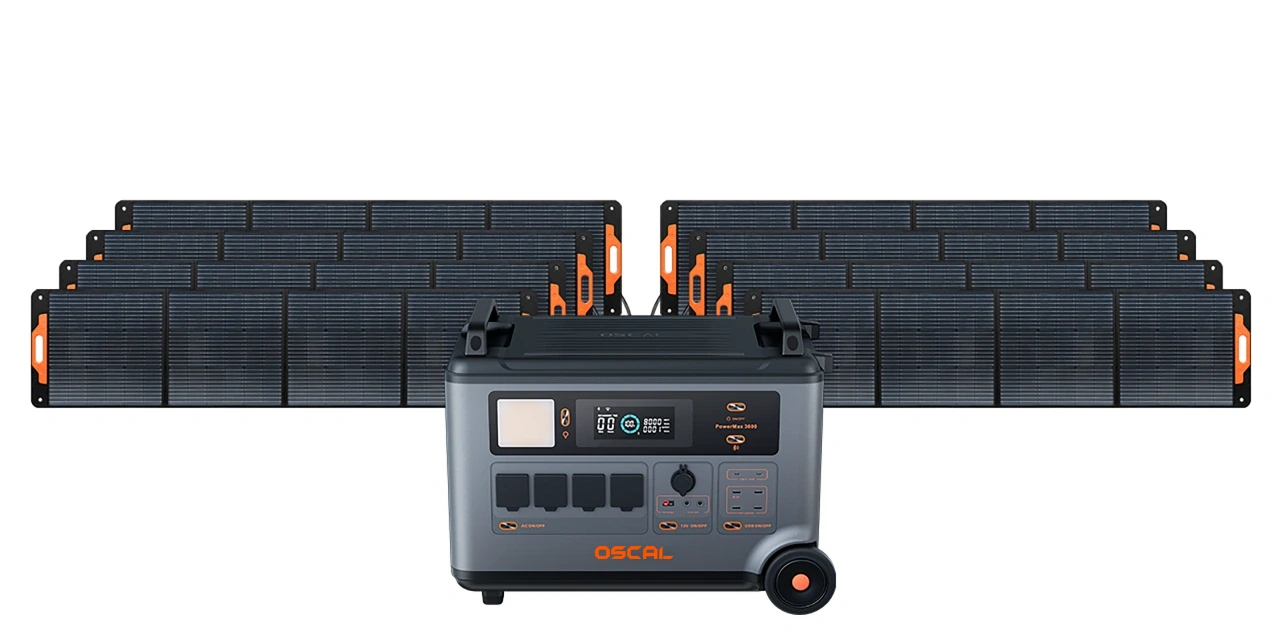

Max.3600W PowerMax3600+ 8*Solar Panel 200W
×
×
MPPT Charger Controller
×
App Control
×
Discharging Temperature
-20℃~55℃ (-4F~131F) Best under the condition from -10°C~45°C(14~113°F
32-104°F (0-40°C)
×
Weight
98.1lbs ( 44.45kg)
69.78lbs(31.65kg)
130.7 lbs(59.28 kg)
Warranty
4-year+
2-year
3-year
Price
Start From US$1799 (Indiegogo price)
US$3499.95
US$2799

Blackview Oscal
PowerMax 3600 Dimension

Length: 590 mm
Width: 350 mm
Height: 441 mm
Weight: 44.45 Kg

SPECS:

BATTERY Battery Capacity 3600 Wh
Battery Type LFP (LiFePO4 battery)
Battery Life Cycles 3500+ Cycles to 80% of Original Capacity
OUTPUT AC Output 4x 3600W Output (Max)
Inverter Type: Pure Sine Wave
Surge Power:7200W
USB-A Port USB-A 12W X1
USB-A 18W X3
USB-C Port USB-C 100W x2
DC Output Anderson 378W X1
DC 5521 36W X2
Cigarette Lighter Port Cigarette Lighter 120W X1
INPUT AC Adapter Input 2200W ( Max)
Recharging times: 1.96H
Solar Input 1600 W ( Max)
Recharging times:2.25H
(With prime sunshine, ideal orientation,
and low temperature)
Car Input 120 W (Max)
Recharging times: 30H
Dual Charging -AC Charging+DC-Solar Charging 1.2 H
-AC Charging+DC-Car Charging 1.86H
GENERAL Weight 98.10 lbs(44.45 kgs)
Dimensions (LxWxD) L590*W350*H441 mm
Charging Temperature 0℃~50℃ (32F~122F)
Ideal from 0℃ to 45℃. (32°F~113°F)
Discharging Temperature -20℃ ~55℃ (-4F~131F)
Ideal from -10℃ ~45℃.(14°F~113°F)
Storage Temperature -10℃ ~45℃ (14°F~113°F)
App Control Yes, via WiFi and Bluetooth
Certification Europe:
CE/RED/ROHS (EU)
Japan:
PSE/METI/IEC
America:
FCC /DOE/CEC/FCC/UL
South Africa: IEC62368
Warranty 4 Years
In the Box 1xBlackview Oscal PowerMax 3600
1x User Manua+Warranty Card
1*AC Charging Cable
1*Car Charging Cable
1*Solar Charging Cable
Note: All of the above specifications are for EU Standard.
For US Standard and JP Standard, there are some differences compared to EU Standard:
The rated power is 3000W.
The AC input power is 1800W (Max).

Blackview Oscal BP3600
Extra Battery Dimension

Length: 590 mm
Width: 350 mm
Height: 441 mm
Weight:36 Kg

SPECS:

BATTERY Battery Capacity 3600 Wh
Battery Type LFP (LiFePO4 battery)
Battery Life Cycles 3500+ Cycles to 80% of Original Capacity
GENERAL Scalability Works with PowerMax3600
Battery Management System BMS
Simultaneous Recharge & Discharge Yes
Weight 83.11 lbs(37.7kgs)
Dimensions (LxWxD) L590*W350*H441 mm
Charging Temperature 0℃~50℃ (32F~122F)
Best under condition from
0℃ to 45℃. (32°F~113°F)
Discharging Temperature -20℃ ~55℃ (-4F~131F)
Best under conditions from
-10℃ to 45℃. (14°F~113°F)
Storage Temperature -10℃ ~45℃ (14°F~113°F)
App Control Yes, via WiFi and Bluetooth
Certification Europe: CE/RED/ROHS (EU) Japan: PSE/METI/IEC America: FCC /DOE/CEC/FCC/UL South Africa: IEC62368
Warranty 5 Years
In the Box 1*Blackview Oscal Extra Battery
1*Battery Expansion Cable
1* User Manua+Warranty Card
Note: All of the above specifications are for EU Standard.
For US Standard and JP Standard, there are some differences compared to EU Standard:
The rated power is 3000W.
The AC input power is 1800W (Max).
Perks
Add-ons Perks

Extra Battery BP3600

$1499

Used to expand your battery capacity (3.6 kWh/Per).

AC Charging Cable
(EU standard )

$12.9

Used to charge PM3600 via AC charging input port for a maximum of 3,600W input.

Trolly

$120

Used to carry your power station.

AC Charging Cable
( US standard )

$12.9

Used to charge PM3600 via AC charging input port for a maximum of 3,000W input.

Car Charging Cable

$12.9

Used to charge PM3600 via car charging input port for a maximum of 240W input.

AC Charging Cable
(JP standard)

$12.9

Used to charge PM3600 via AC charging input port for a maximum of 3,000W input.

100W PM100
Solar Panel

$120

Used to charge PM3600 via solar charging input port with 100W input.

200W PM200
Solar Panel

$300

Used to charge PM3600 via solar charging input port with 200W input.

Risks & Challenges

We hold this project in high regard to make it ready on Indiegogo. Currently, we are fully immersed in mass production and expect to improve it constantly. If the product specifications change while the campaign is in progress, we will let you know as soon as possible in the page's "Updates" section.

While we exert the utmost effort to minimize any potential logistical delays during transportation, we kindly request your understanding regarding unforeseen circumstances beyond our control that may impact delivery schedules.

If you've any further questions or problems, please check the FAQ section or contact us at allen@oscal.hk

The Evolution of Oscal PowerMax 3600

Modular Design Idea

2021.12

1

Prototype Testing

2022.03

2

Trial Production & Test

2022.07

3

Mass Production & Final Test

2023.10

4

Indiegogo Crowd- funding Launch

2024.1

5

Overseas Warehouse Delivery

2024.2

6
Why Choose Blackview Oscal?

Blackview, founded in 2013, is an innovation-driven tech company with extensive industry experience in rugged smart devices. Over the past decade, Blackview has been breaking many new grounds in the rugged smart device field with a slew of industry firsts: the first rugged phone with thermal imaging-BV9800 Pro, the first rugged phone with night vision-BV8800, the first rugged phone with 40M laser rangefinder and 100-lumen flashlight-BV9300. Not to mention N6000, the first mini rugged phone, and the Active 8 Pro, the first rugged tablet. All of them are warmly welcomed and loved by people from over 80 countries worldwide.

In recent years, with the surge in energy costs caused by wars and the growing demand for low-cost (solar, hydro, wind) energy solutions, Blackview & Oscal, driven by the determination to meet users' electricity needs, have successively launched the PowerMax 700 and PowerMax 300 in the portable power station market, which immediately became well-known as top sellers among users worldwide. Drawing from their experience in portable power stations and rugged smart devices, their R&D team recently undertook a pioneering effort to integrate rugged capabilities from rugged phones into power stations. As a result, the PowerMax3600, the first attempt at the rugged portable power station in the world was introduced.

Oscal After-Sales Service Center
City: Hattersheim
State: Hessen
Country: Germany
City: Montclair
State: California
Country: United States
City: Arlington
State: Texas
Country: United States
See Who’s Talking About Us
Connect With Blackview Oscal

FIND US ON FACEBOOK

TWEET ABOUT Blackview Oscal

TAG US ON INSTAGRAM

BATTERY Battery Capacity 3600 Wh
Battery Type LFP (LiFePO4 battery)
Battery Life Cycles 3500+ Cycles to 80% of Original Capacity
OUTPUT AC Output 4x 3600W Output (Max)
Inverter Type: Pure Sine Wave
Surge Power:7200W
USB-A Port USB-A 12W X1
USB-A 18W X3
USB-C Port USB-C 100W x2
DC Output Anderson 378W X1
DC 5521 36W X2
Cigarette Lighter Port Cigarette Lighter 120W X1
INPUT AC Adapter Input 2200W ( Max)
Recharging times: 1.96H
Solar Input 1600 W ( Max)
Recharging times:2.25H
(With prime sunshine, ideal orientation,
and low temperature)
Car Input 120 W (Max)
Recharging times: 30H
Dual Charging -AC Charging+DC-Solar Charging 1.2 H
-AC Charging+DC-Car Charging 1.86H
GENERAL Weight 98.10 lbs(44.45 kgs)
Dimensions (LxWxD) L590*W350*H441 mm
Charging Temperature 0℃~50℃ (32F~122F)
Ideal from 0℃ to 45℃. (32°F~113°F)
Discharging Temperature -20℃ ~55℃ (-4F~131F)
Ideal from -10℃ ~45℃.(14°F~113°F)
Storage Temperature -10℃ ~45℃ (14°F~113°F)
App Control Yes, via WiFi and Bluetooth
Certification Europe:
CE/RED/ROHS (EU)
Japan:
PSE/METI/IEC
America:
FCC /DOE/CEC/FCC/UL
South Africa: IEC62368
Warranty 5 Years
In the Box 1xBlackview Oscal PowerMax 3600
1x User Manua+Warranty Card
1*AC Charging Cable
1*Car Charging Cable
1*Solar Charging Cable
Note: All of the above specifications are for EU Standard.
For US Standard and JP Standard, there are some differences compared to EU Standard:
The rated power is 3000W.
The AC input power is 1800W (Max).
