PowerMax 2400 Pro
Revolutionize the Next Energy Era!
2,016Wh to 22,176Wh Mega Safe Sustainable Power
for Home Backup, Travel, and Beyond.
Why Choose OSCAL PowerMax 2400 Pro?
No.1
Budget-Savvy & Eco-Friendly 3-in-1 Balcony Solar System
No.2
World's First Portable Power Station with Powerful 25W+10W Dual Speakers
No.3
Budget-Savvy & Eco-Friendly 3-in-1 Balcony Solar System
No.4
Supports 99% of Home Devices & 1.2 Hours Ultra-Fast Charging & Smart APP Control
No.5
More Safety with LFP Battery & Ultra-bright LED Light
No.1
Budget-Savvy & Eco-Friendly 3-in-1 Balcony Solar System
Eco and Budget Win-Win

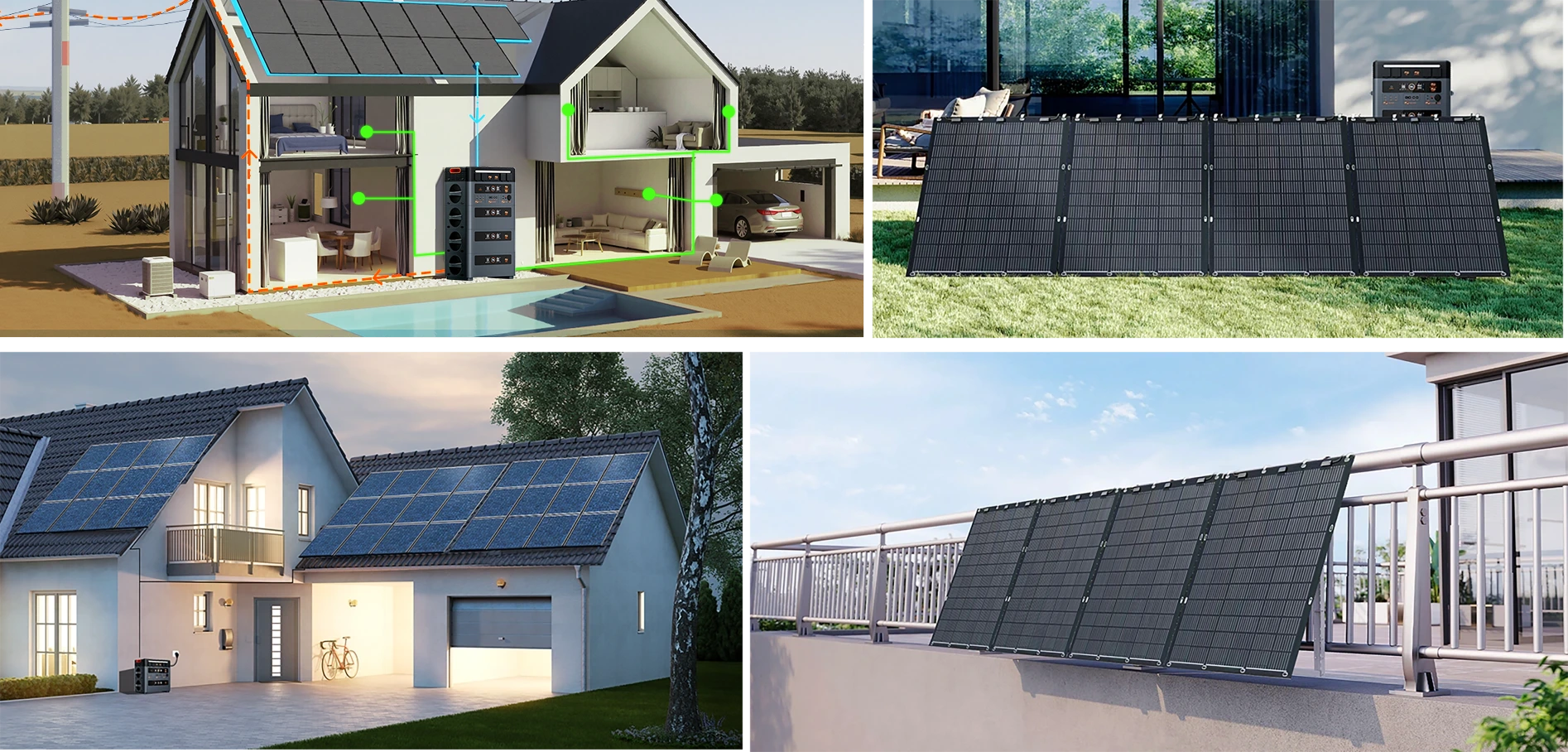

3-in-1 Balcony Solar System
Enjoy green energy anytime with the PowerMax 2400 Pro 3-in-1 Balcony Solar System! Lower your electricity costs, live more sustainably, and sell surplus power back to the grid when connected.
On Grid
Off Grid
On and Off grid
Solar + On-Grid Ready = Bigger Savings for You!
OSCAL
PowerMax 2400 Pro
Peers
OSCAL
PowerMax 2400 Pro
Peers
OSCAL
PowerMax 2400 Pro
Peers
Revolutionize Your Solar Strategy

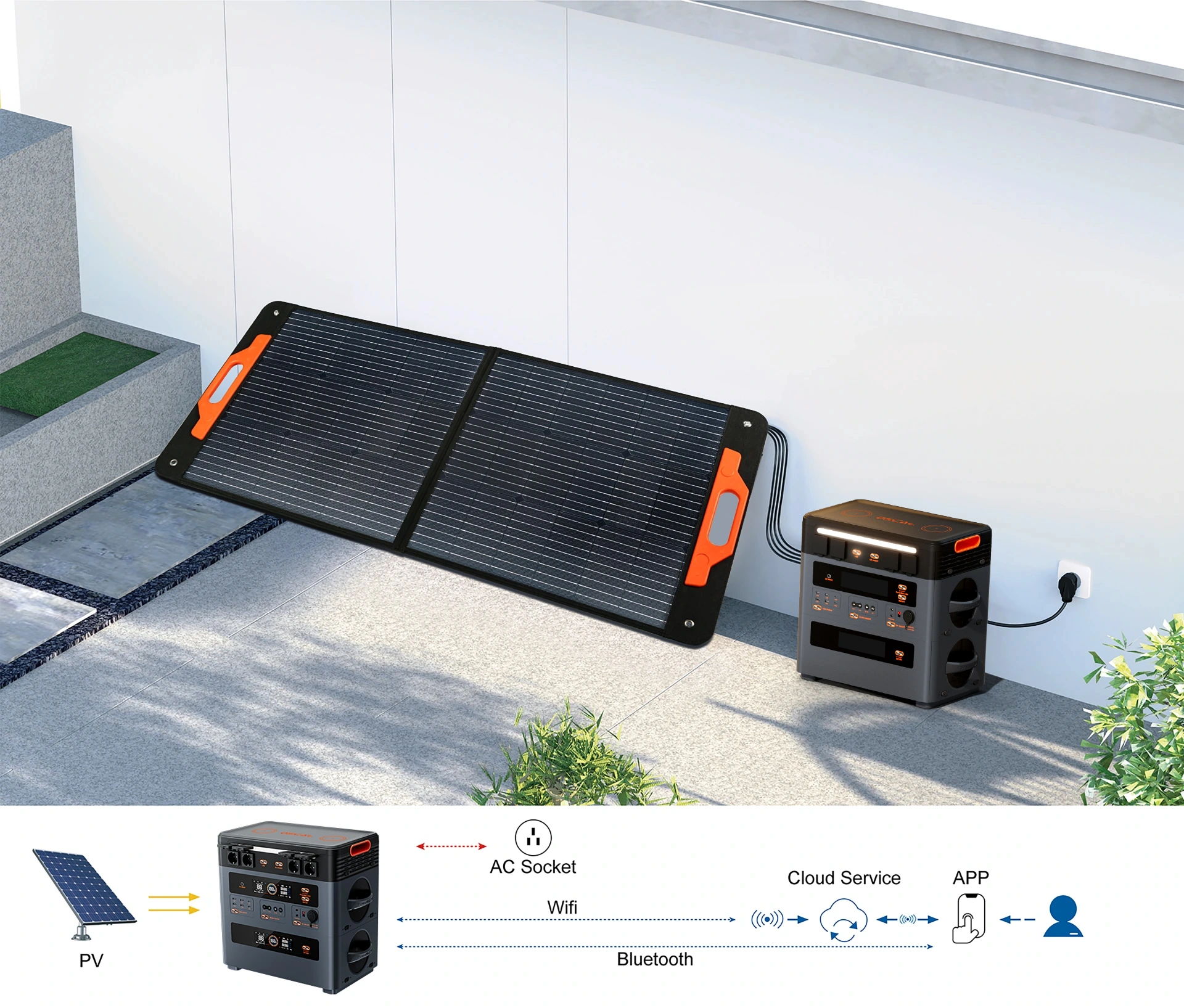

Free Setup for Balcony Solar System with a Built-in 800W Microinverter
Power OSCAL PowerMax 2400 Pro with balcony solar panels and a built-in microinverter, creating a self-sustaining solar system. Save on electricity bills by using stored energy during peak times and make money by selling excess power back to the grid.
No.2
World's First Portable Power Station with
Powerful 25W+10W Dual Speakers
Let Every Beat Echo in Your Soul
Powerful Dual Speakers
Make every moment special with PowerMax 2400 Pro. With its 25W subwoofer & 10W tweeter, revel in deep bass and sharp highs, no matter where you are. And it's got your back in an emergency.
10W
Tweeter
25W
Subwoofer
130dB
Supreme Thundering Sound
100-Meter
Max Sound Distance
Exciting Outdoor & Indoor Activities
Indulge in a Theater-like
Outdoor Movie Night
Breathtaking Audio that
Enhances Every Scene
Celebrate with Songs and
Dance by the Sea
Groove Under the Night Sky,
with Tunes Leading the Way
Bring the Cinema Home with
Room-Filling Sound
Don't Let a Blackout Ruin Your Night
Exciting Outdoor & Indoor Activities
SOS Self-Rescue in Remote Areas
Relentless Calls for Help to Buy Rescue Time
Drive Away Threatening Wildlife
Secure Personal Safety Efficiently
No.3
2,016Wh to 22,176Wh Mega Capacity with
Innovative Cableless Stacking Design
2,016Wh to 22,176Wh Mega Capacity
Up to 2 Weeks of Power Supply
Innovative Cableless Stacking Connection
Simpler Installation↑ ，Neater↑
Up-and-Down Machine Separation Achieved
Down to 13.9 lbs Each, Easier to Carry ↑
Endless Power, Enjoy Every Blissful Moment
2,016Wh to 22,176Wh Mega Capacity
Want more reliable power for blackouts, saving on energy, or off-grid living? PowerMax 2400 Pro, with its powerful 2,016Wh battery, can expand up to 22,176Wh with 10*BP2400 Pro additional batteries. Enjoy reliable, long-lasting energy for all your devices.
2,016Wh
8,064Wh
22,176Wh
PowerMax 2400 Pro
About 1-2 Days
PowerMax 2400 Pro+
3*BP2400 Pro
Up to 1 Week
PowerMax 2400 Pro+
10*BP2400 Pro
Up to 2 Weeks
Clutter-Free Power Stacking
from Base to Peak!

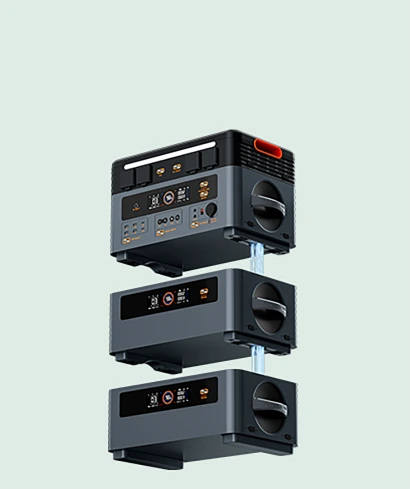

Innovative Cableless Stacking Connection
Say goodbye to tangled cables and hello to simplicity with OSCAL PowerMax 2400 Pro and BP2400 Pro. The seamless stacking design ensures space efficiency, reliability, and a clean setup for your power needs.
Cableless Stacking Connection
Simpler Installation↑
Neater↑
Cable Stacking Connection
More complex Installation↑
Messier↑
Pack More Power, Feel Less Weight
Up-and-Down Machine Separation Achieved with Cableless Stacking
No more power storage hassles! With ergonomic handles and portable cableless stacking modular design, PowerMax 2400 Pro is easy to carry to your car, lawn, or any room in your home.
Detachable Modular Innovation
6.3 kg(13.9 lbs)
20.5 kg(45.5 lbs)
19.9 kg(43.8 lbs)
No.4
Supports 99% of Home Devices & 1.2 Hours
Ultra-Fast Charging & Smart APP Control
The Power to Do It All!
Powerful 2400W Output Supports 99% of Home Devices
Stay powered and at ease with PowerMax 2400 Pro. Its powerful 2400W output can handle 99% of your home devices, making it ideal for camping, emergency blackouts, and outdoor projects. No matter where you are, it's got you covered.
Home-Grade Power, Anytime, Anywhere
Pure Sine Wave Output
With pure sine wave AC output, PowerMax 2400 Pro ensures your devices run smoothly without any voltage hiccups. Plus, it is compatible with all household electronics, offering stability and dependability that rival your home's AC outlets.
Power Up, Perform Better, Enjoy More
PowerMax 2400 Pro
High-Power Performance
Low-Power Peers
Charging 16 Devices at Once, Easy as Pie!
Power Everything, From Home to Adventure

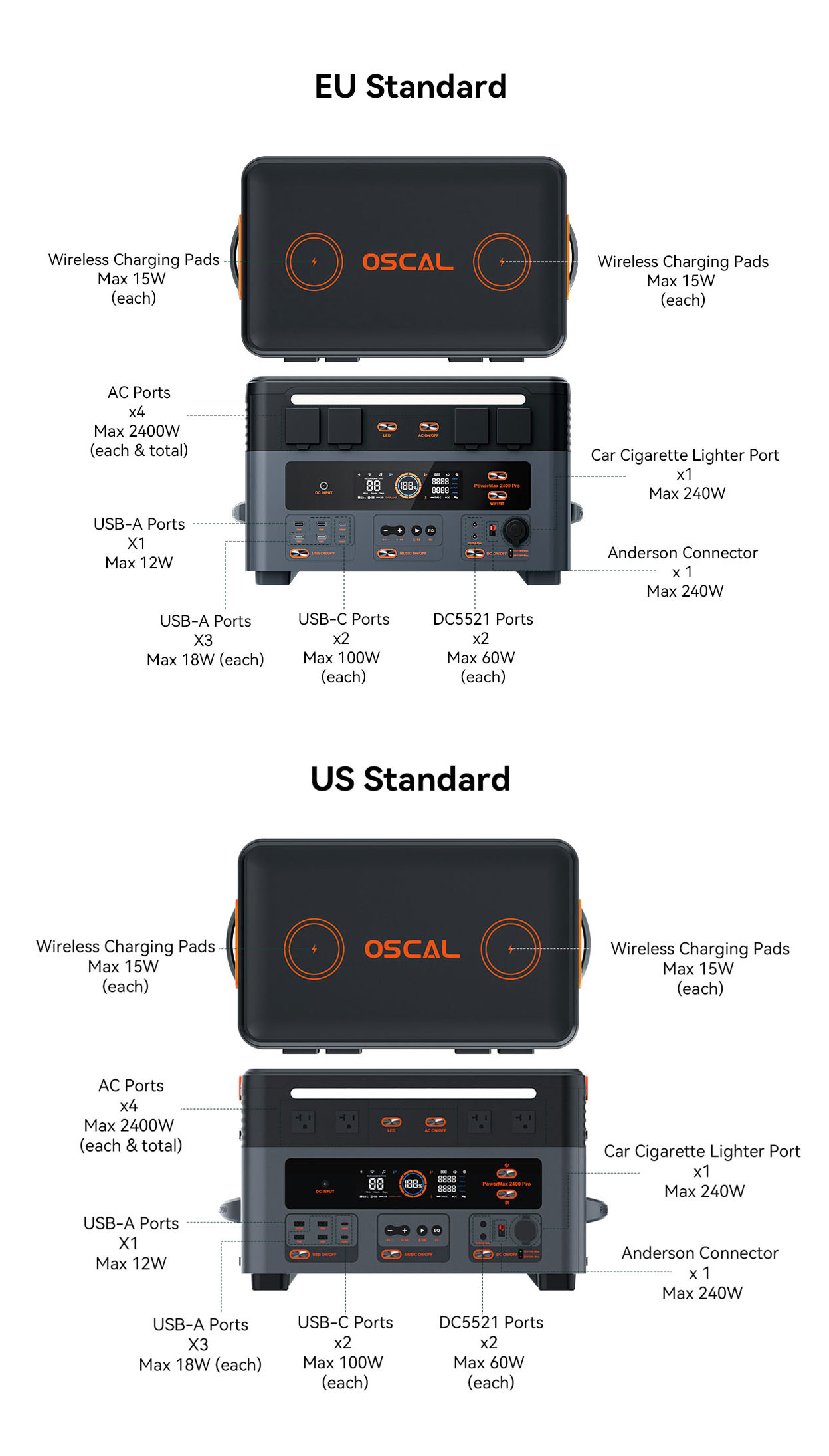

16 Thoughtfully Organized Outputs
With 16 thoughtfully organized outputs—wireless charging, a car charger, DC outlets, AC sockets, USB-A, and USB-C—PowerMax 2400 Pro is designed to meet all your needs, from home blackouts to off-grid living and outdoor adventures, ensuring you stay comfortable and at ease.
1.The DC5521 port is a 5.5x2.1mm round connector.
2.Using the DC5521 port, car cigarette lighter port, and Anderson connector together allows for a maximum power of 300W.
3.Each AC port supports up to 2400W, with a combined limit of 2400W across all four.
4.The total maximum output for all 16 outputs is 2400W.
On-the-Go Energy Revolution
Unique DC 12V/24V Output Ports
Ready for the road with PowerMax 2400 Pro – featuring unique DC 12V/24V output ports for RVs, trucks, and more, ensuring reliable power for all your on-the-go adventures.
Juicing up
Trucks
Charging
RVs
Powering up
the Car Fridge
Charging the
Vacuum Cleaner
No More Battery Anxiety
Effortless Direct Emergency Power for Your EV
Planning a long drive in your EV and fearing you might run out of battery before the next charging stop? Relax! With its impressive 2400W AC port, you can give your car a quick emergency charge, ensuring a smooth and worry-free journey.
2,016Wh
PowerMax 2400 Pro
≈6 Miles
8,064Wh
PowerMax 2400 Pro+3*BP2400 Pro
≈24 Miles
22,176Wh
PowerMax 2400 Pro+10*BP2400 Pro
≈66 Miles
Power
RV
Power
Electric Bike
Power
Electric Scooter
Power
Yacht/Boat
Boost Your Charge in a Blink
Dual 100W USB-C Fast Charging
Step up to the USB-C era! With PowerMax 2400 Pro, dual 100W USB-C ports power up your phone and laptop fast, helping you ditch the extra chargers and live battery worry-free!
Wireless Charging,
Always Fully Powered

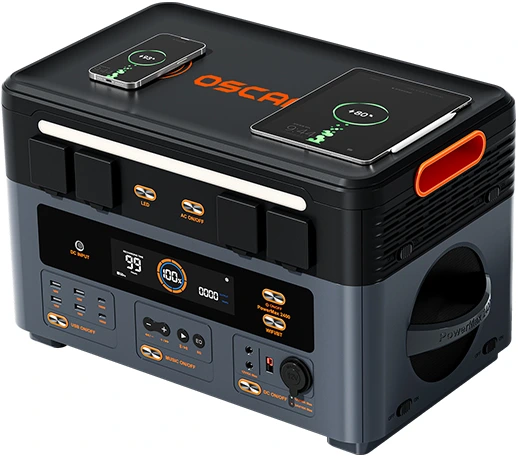

15W+15W Wireless Charging Pads
Pop your phone, earphones, or any device onto OSCAL PowerMax 2400 Pro wireless charging pad for a hassle-free power boost. Stay charged and ready to roll, no matter how hectic life gets.
2016Wh Mega Capacity,
2400W Super Power, Ready for All Scenarios

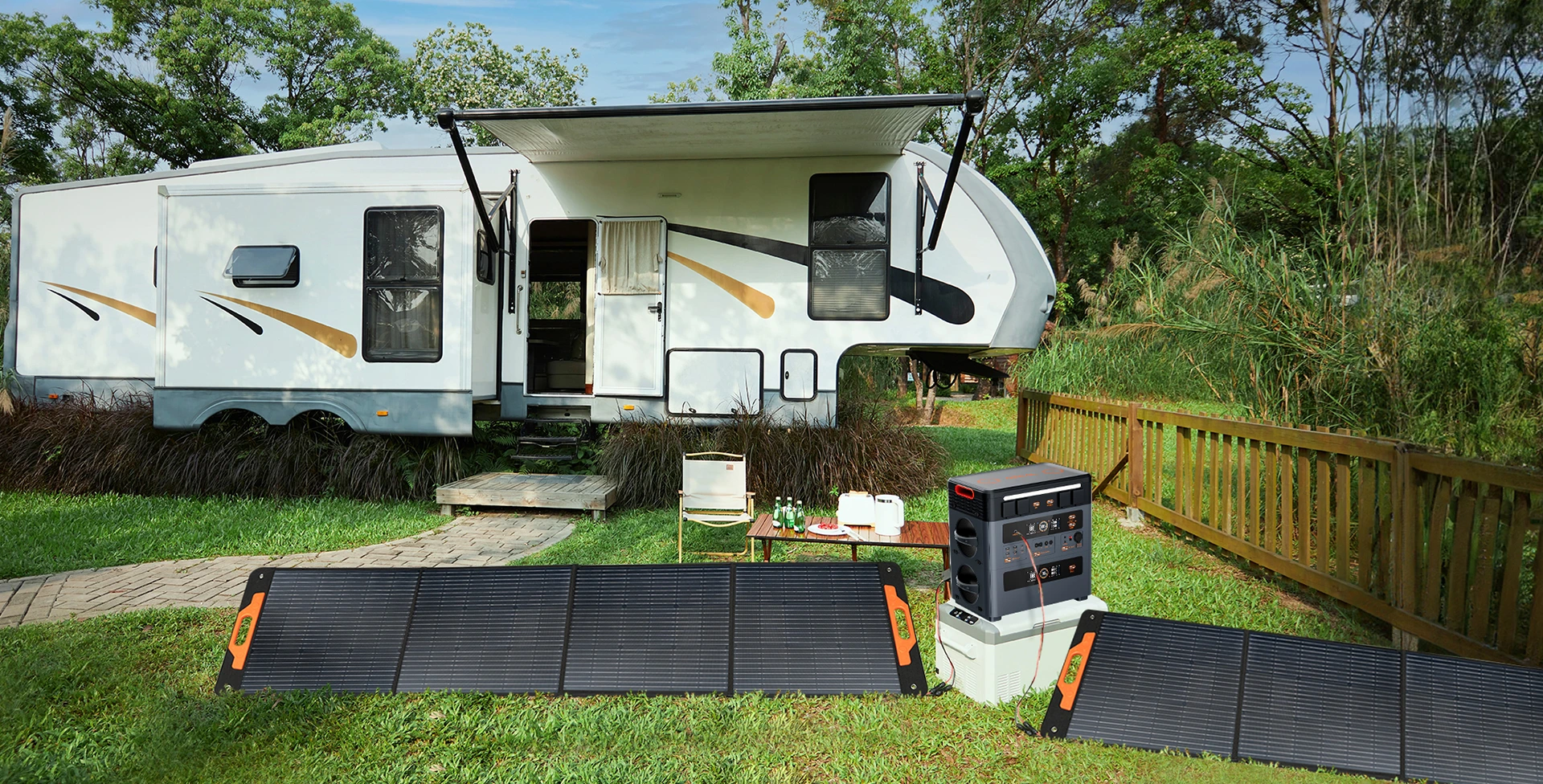

RVing & Outdoor Fun
Home Power Backup
Professional Power
Filmmaking and Photography
Ultra-Fast Charging: 1500W Max Power
0-80% Charge in just 1.2 Hours
Never miss a moment with PowerMax 2400 Pro's lightning-fast 1500W charging. Charge up to 80% in 1.2 hours and be adventure-ready with a full charge in just 1.6 hours.
On the Go? Charge in a Snap with Solar
1200W + 300W Hyper-Fast Two-Way Solar Charging
Stay energized and eco-conscious on your adventures with PowerMax 2400 Pro. Fully charge it in a lightning-fast 1.6 hours using up to 1500W of solar power. Ideal for outdoor fun, travel, or emergencies.
Go Greener and Save More with PowerMax 2400 Pro!
Enjoy stable, reliable power with clean energy from solar and wind. Save money and reduce carbon emissions by up to 2,415 kg over its lifetime. Together, we can create a greener future.
Charge. Feed. Save
Bidirectional Power Flow
Power Beyond Limits with PowerMax 2400 Pro. Harness bidirectional power flow technology to charge devices or feed power back to the grid. Lower your expenses, minimize waste, and help build a sustainable world together!
* All-in-One Port for Charging and Power Feeding.
AC Fast Charging
1400W(Max)
1.7 Hours
Full Charge
Two-Way
Solar Charging
1500W(Max)
1.6 Hours
Full Charge
AC + Solar Charging
1500W(Max)
1.6 Hours
Full Charge
Car Charging
240W(Max)
10 Hours
Full Charge
EV Charging Station
1500W(Max)
1.6 Hours
Full Charge
Gas Generator
Charging
1500W(Max)
1.6 Hours
Full Charge
Wind/Water
Turbine Charging
1500W(Max)
1.6 Hours
Full Charge
Lead-acid
Battery Charging
240W(Max)
10 Hours
Full Charge
Mighty Power at Your Command

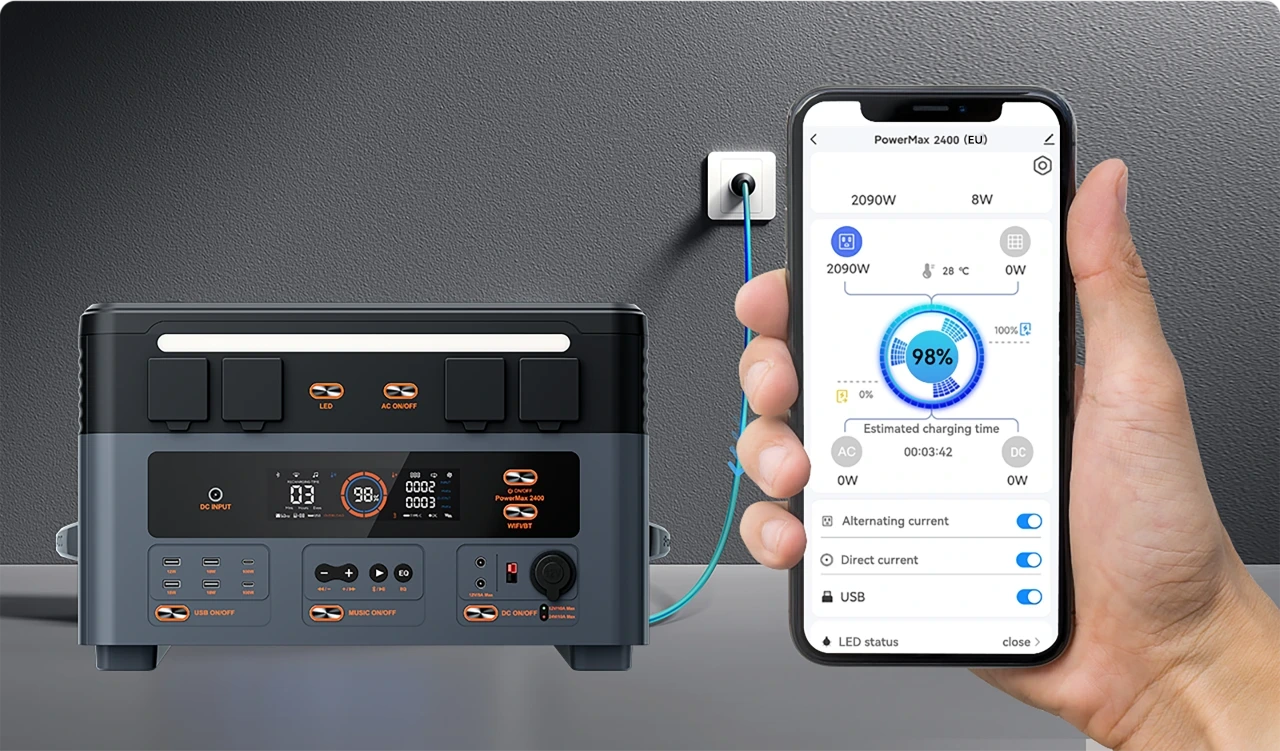

Smart APP via Wireless BT or WiFi
Access the PowerMax 2400 Pro smart app via wireless BT or WiFi, allowing you to effortlessly control power output and check charging times from your phone, making everything more convenient and hassle-free.
PowerMax 2400 Pro
Wireless BT & WiFi
Peers
Only Wireless BT
Note: Once you connect your phone to PowerMax 2400, you can control it without distance restrictions as long as WiFi is available.
No.5
More Safety with LFP Battery & Ultra-bright LED Light
Zoom in on Every Detail. Shield Up.
Ensure Ultimate Safety
Reliable Energy for Decades

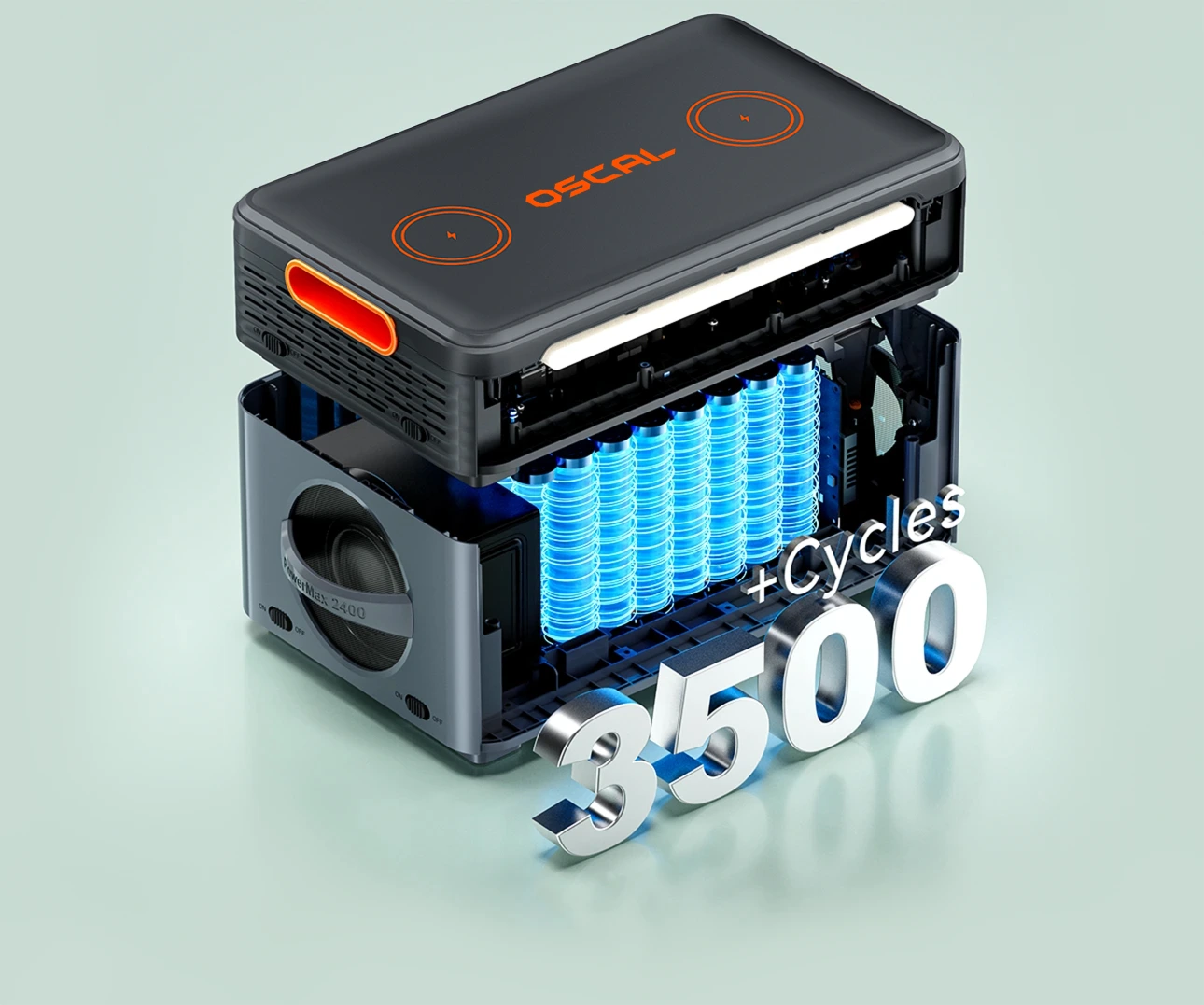

Top-tier UL-certified EV-grade LFP Battery
Equipped with UL-certified, top-tier EV-grade LFP (LiFePO4) battery, PowerMax 2400 Pro boasts 3,500 uses before capacity drops to 80%, ensuring you a solid 10-12 years of daily power supply.
UL Certified For Superior Safety
Battery Capacity ≥80%
Note: Assuming one full charge/discharge cycle every 1-2 days, after 3500 cycles (about 10-12 years), the battery will still retain over 80% of its original capacity.
Ultimate Battery Safety Made Simple
Smart Battery Management System
At the heart of safe battery usage, OSCAL PowerMax 2400 Pro's Battery Management System provides smart, real-time oversight of voltage, current, and temperature, offering you unmatched power security.
Eightfold Safety Protection
Reliable Power for Your Wildest Adventures
Stable Operation from -4℉ to 113℉
From the icy Arctic to the blazing desert, PowerMax 2400 Pro guarantees steady power, keeping your devices running reliably.
Instant Switch, No Interruptions
Ultra-fast UPS Auto-switch <0.01s
When connected to household power, PowerMax 2400 Pro defaults to UPS mode. If a power failure occurs, it kicks in within an ultra-fast 0.01 seconds, providing seamless power to your devices for uninterrupted operation.
PowerMax 2400 Pro
Peers
Before the Blackout
After the Blackout
Pro-grade Cooling for Peak Efficiency
Efficient Cooling System
With four intelligent fans, PowerMax 2400 Pro ensures premium cooling. When your load hits over 480W, the cooling system efficiently kicks in, making it your go-to for camping, emergencies, or lengthy outdoor work.
Seven Temperature Sensors
Temperature Monitoring
at 30ms/time
4*72000mm³
Ultra-large Smart Temperature-
activated Fans
Power On the Go, Silence in Tow
Power and peace coexist with the PowerMax 2400 Pro. It operates quietly during light tasks, ensuring your environment stays calm. Even at peak performance, noise remains under 58dB, so you can stay comfortable and focused.
≤480W Load
480-1200W Load
1200W-2400W Load
0dB(Utter Silence)
30-45dB(Leaf Rustling)
46-58dB(Rain Whisper)
Pro-grade Cooling for Peak Efficiency
Efficient Cooling System
With four intelligent fans, PowerMax 2400 Pro ensures premium cooling. When your load hits over 480W, the cooling system efficiently kicks in, making it your go-to for camping, emergencies, or lengthy outdoor work.
Fire-Rated Protection for
Every Outdoor Adventure
Top-Level UL94V-0 Fire Safety Standard
With its UL94V-0 fire safety rating, the PowerMax 2400 Pro offers superior protection and durability in tough environments. From outdoor barbecues to camping trips, it keeps you safe and secure.
30CM Vertically
Drop-Proof Design
Even when used outdoors, PowerMax 2400 Pro can endure vertical falls from 30-cm onto hard surfaces or grass without sustaining damage.
Effortless Power Insights, Even Under the Sun
Ultra-large Smart LCD Display
Enjoy clear power status under the sun with PowerMax 2400 Pro's 1000-nit screen. Its large smart LCD display gives you all the power information you need for efficient real-time monitoring and management, whether at home, outside, or in a crisis.
PowerMax 2400 Pro
Peers
warning
warning
warning
warning
pack accesses
discharge time
Spread Out 235 x 53.6 cm
Folded Up 61.8 x 53.6 cm
OSCAL PowerMax 2400 Pro
Weight: Approx. 24.45Kg/53.8lbs

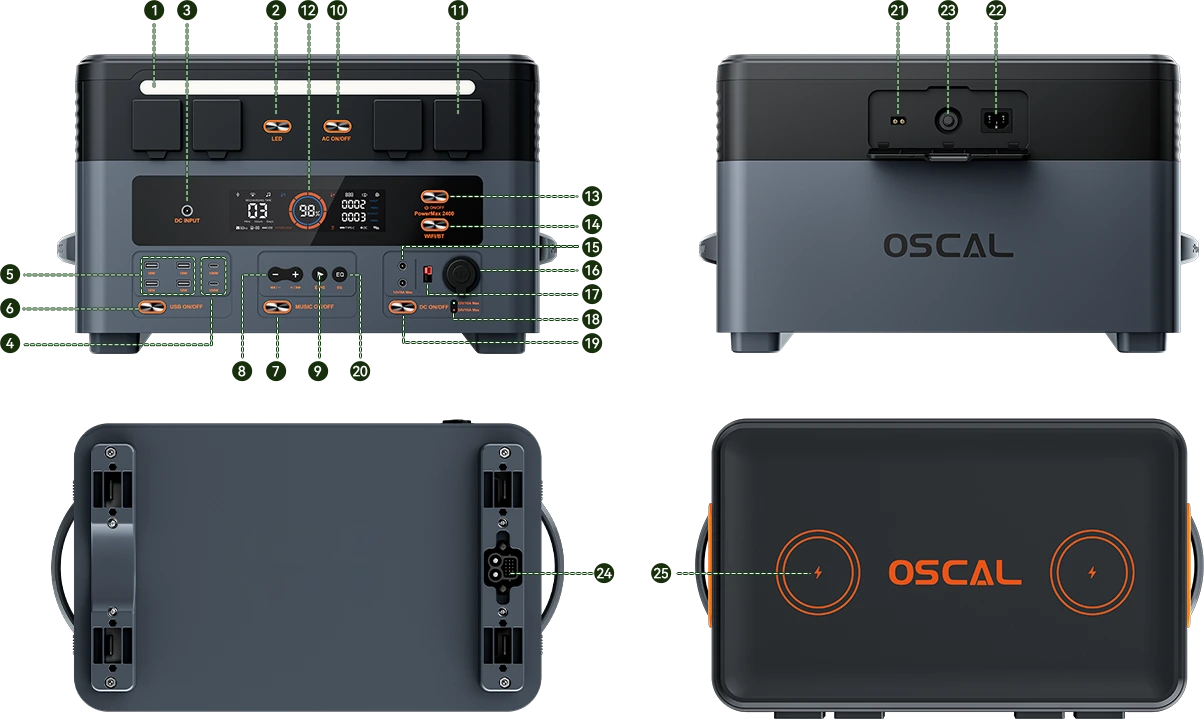

switch
switch button
Wireless BT reset button
connection switch
output port
indicator
input port
port
| Battery Info | Capacity | 2,016Wh |
| Scalability | 2,016Wh to 22,176Wh PowerMax 2400 Pro + Up to 10*BP2400 Pro |
|
| Type | LiFePO₄(Lithium Iron Phosphate) | |
| Life Cycles | 3,500+ Cycles to 80% Original Capacity | |
| Shelf-life | Recharge to 80% Every 3-6 Months | |
| Management System | BMS | |
| Output | Power | 2400W, Surge Power: 4800W |
| Inverter Type | Pure Sine Wave | |
| AC Outlets | 4x 2400W Max | |
| USB-A Ports | 3x 18W, 1x 12W | |
| USB-C Ports | 2x 100W Max | |
| DC5521 Ports | 2x 60W | |
| Car Cigarette Lighter Port | 1x 240W Max | |
| Anderson Connector | 1x 240W Max | |
| Wireless Charging Pads | 2x 15W | |
| Input | AC Fast Charging | 1.7 Hours(Full Charge) 1,400W(Max) Pair with PM200 for 1,500W Max. |
| Solar Charging | Two-Way 1.6 Hours(Full Charge) /1200W+300W(Max) |
|
| 12/24V Car Outlet(120W/240W) |
24V: 10 Hours(Full Charge) 12V: 20 Hours(Full Charge) |
|
| General | Pass-through Charging | Yes |
| UPS Switching Time | 0.01s | |
| Dimensions (L x W x H) | 47x29x32.6cm/18.5x11.4x12.8in | |
| Weight | Approx. 26.8Kg/59.1lbs | |
| Operating Temperature | -4℉ to 113℉ (-20℃-45℃) | |
| Storage Temperature | -14-113℃ (-10℃-45℃) | |
| Warranty | 5 Years | |
| Certifications | Europe: CE/LVD(EN62368-1) CE/EMC(EN55032/35) RED(ETSI EN 303 417; ETSI EN 301 489-1; ETSIEN301 489-3; EN 62479) ROHS (EU) Japan:PSE/METI America: FCC ID DOE CEC FCC (Part 15C) UL |

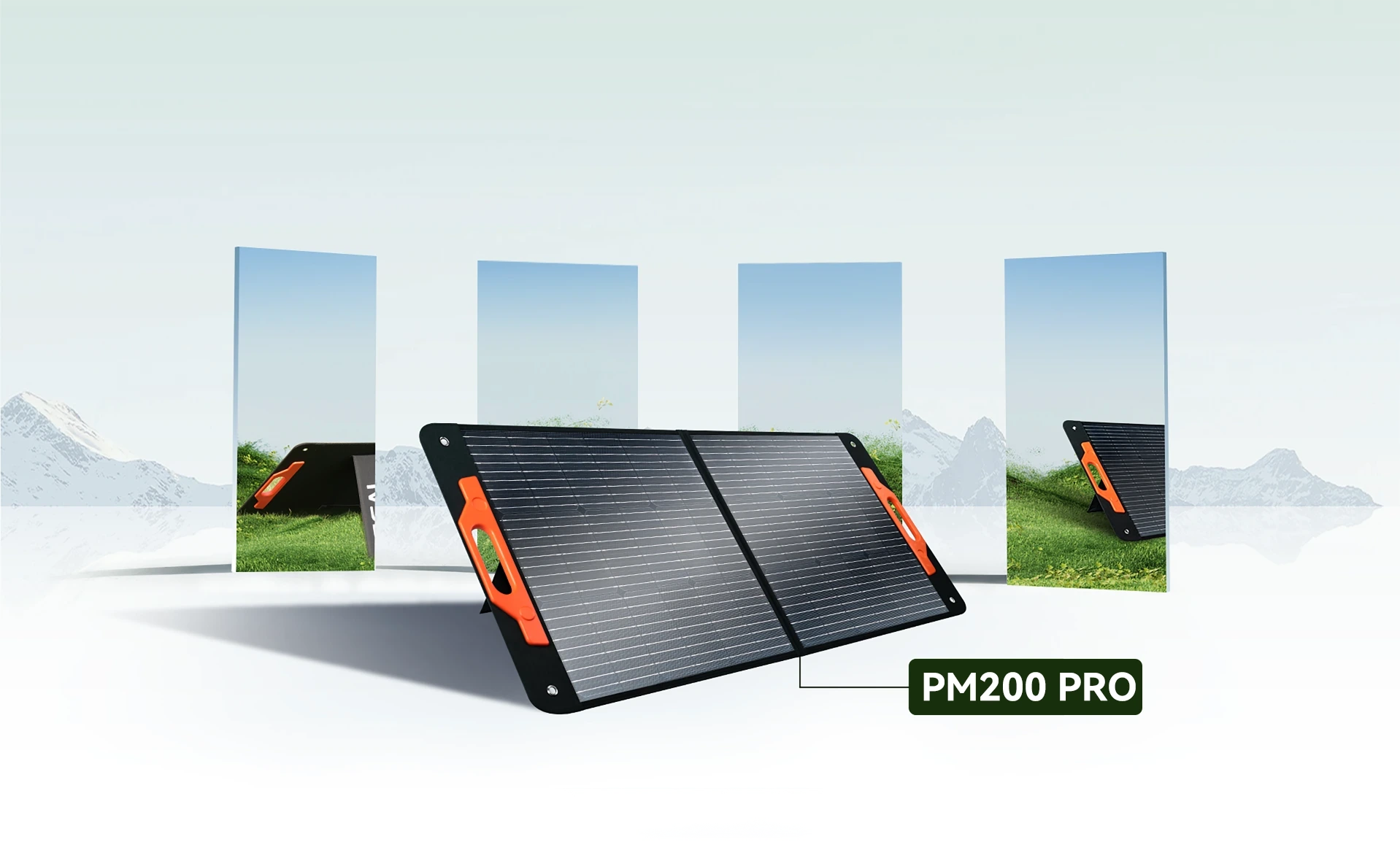

| Panel Info | Power | 200W |
| Cell Lamination | ETFE (Ethylene Tetrafluoroethylene) | |
| Cell Type | Monocrystalline Silicon | |
| Cell Efficiency | ≥21.7% | |
| MPPT Efficiency | Up to 95% | |
| Open Circuit Voltage | 25.2V(Not less than 23.94V) | |
| Short Circuit Current | 11.42A(Not less than 10.85A) | |
| General | Operating Temperature | 14℉-149℉ (-10℃-65℃) |
| Weight | 7KG/15.43 lbs | |
| Dimension (Unfolded) | 53.6*235cm/21.1x92.5in | |
| Dimension (Folded) | Dimension (Folded) | |
| Warranty | 2 Years |
| Battery Info | Capacity | 2,016Wh |
| Scalability | 2,016Wh to 22,176Wh PowerMax 2400 Pro + Up to 10*BP2400 Pro |
|
| Type | LiFePO₄(Lithium Iron Phosphate) | |
| Life Cycles | 3,500+ Cycles to 80% Original Capacity | |
| Shelf-life | Recharge to 80% Every 3-6 Months | |
| Management System | BMS | |
| Output | Power | 2400W, Surge Power: 4800W |
| Inverter Type | Pure Sine Wave | |
| AC Outlets | 4x 2400W Max | |
| USB-A Ports | 3x 18W, 1x 12W | |
| USB-C Ports | 2x 100W Max | |
| DC5521 Ports | 2x 60W | |
| Car Cigarette Lighter Port | 1x 240W Max | |
| Anderson Connector | 1x 240W Max | |
| Wireless Charging Pads | 2x 15W | |
| Input | AC Fast Charging | 1.7 Hours(Full Charge) 1,400W(Max) Pair with PM200 for 1,500W Max. |
| Solar Charging | Two-Way 1.6 Hours(Full Charge) /1200W+300W(Max) |
|
| 12/24V Car Outlet(120W/240W) |
24V: 10 Hours(Full Charge) 12V: 20 Hours(Full Charge) |
|
| General | Pass-through Charging | Yes |
| UPS Switching Time | 0.01s | |
| Dimensions (L x W x H) | 47x29x32.6cm/18.5x11.4x12.8in | |
| Weight | Approx. 26.8Kg/59.1lbs | |
| Operating Temperature | -4℉ to 113℉ (-20℃-45℃) | |
| Storage Temperature | -14-113℃ (-10℃-45℃) | |
| Warranty | 5 Years | |
| Certifications | Europe: CE/LVD(EN62368-1) CE/EMC(EN55032/35) RED(ETSI EN 303 417; ETSI EN 301 489-1; ETSIEN301 489-3; EN 62479) ROHS (EU) Japan:PSE/METI America: FCC ID DOE CEC FCC (Part 15C) UL |
